H01N2-D : มาตรฐาน IEC 60228/ VDE 0295 |
|
  | Electrical and technical specifications :
| Rated voltage | : Uo/U 100/100 V | Test voltage | : 1000 V | Bending radius | : 12 x cable diameter | Temperature range | : Flexible -25oC to +80oC | | : Stationary -40oC to +80oC | Flame retardant to | : IEC 60332-1-2 | | |  |

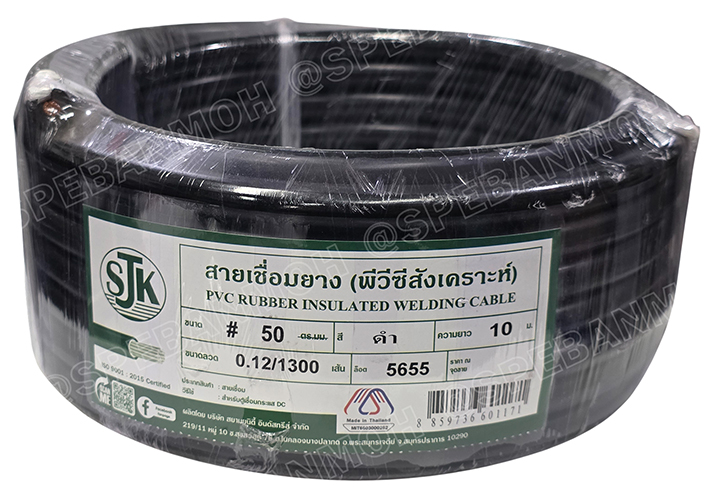

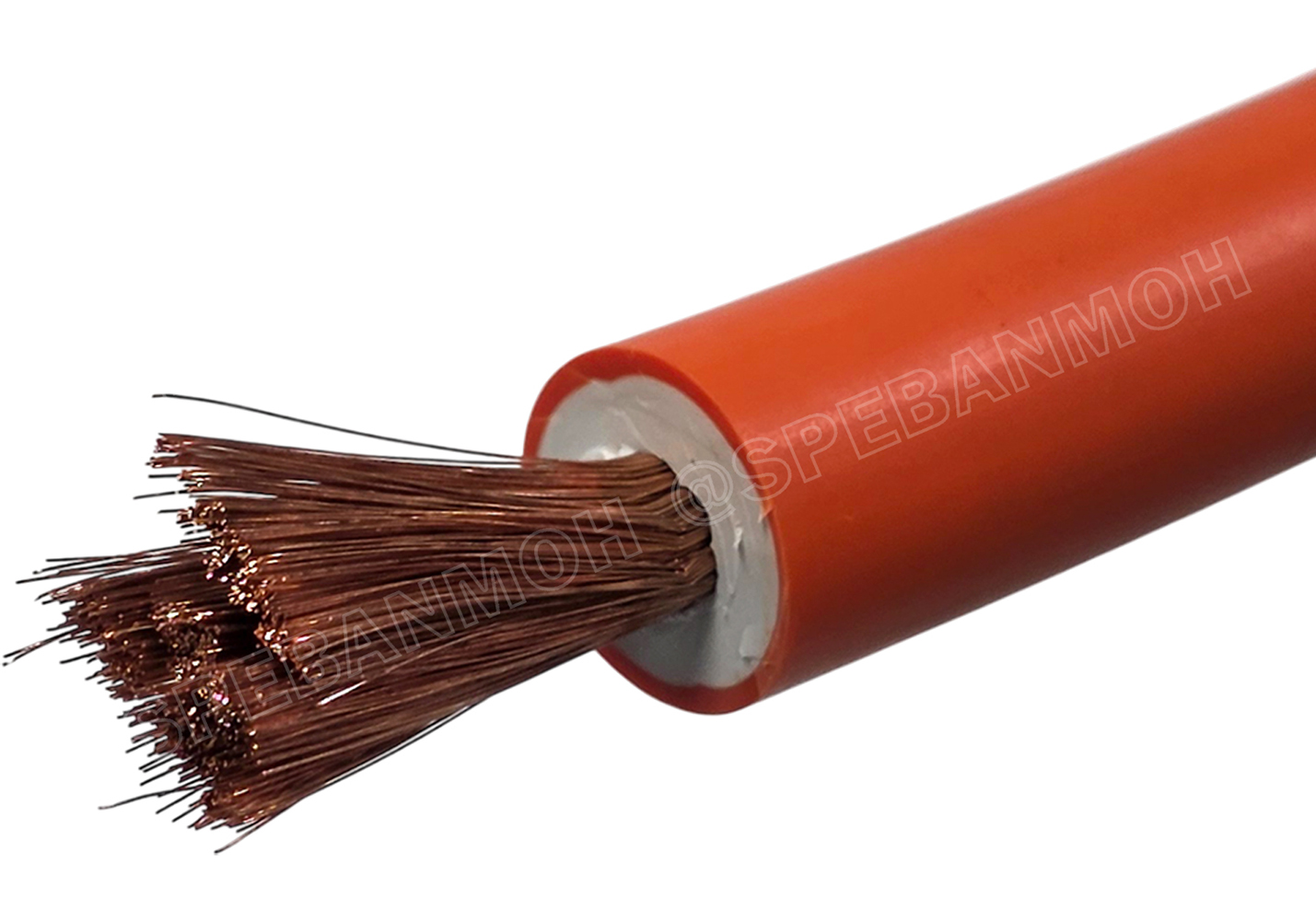

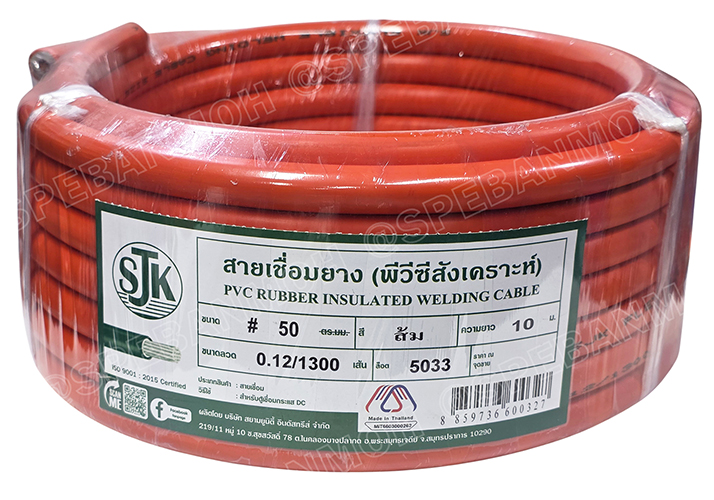

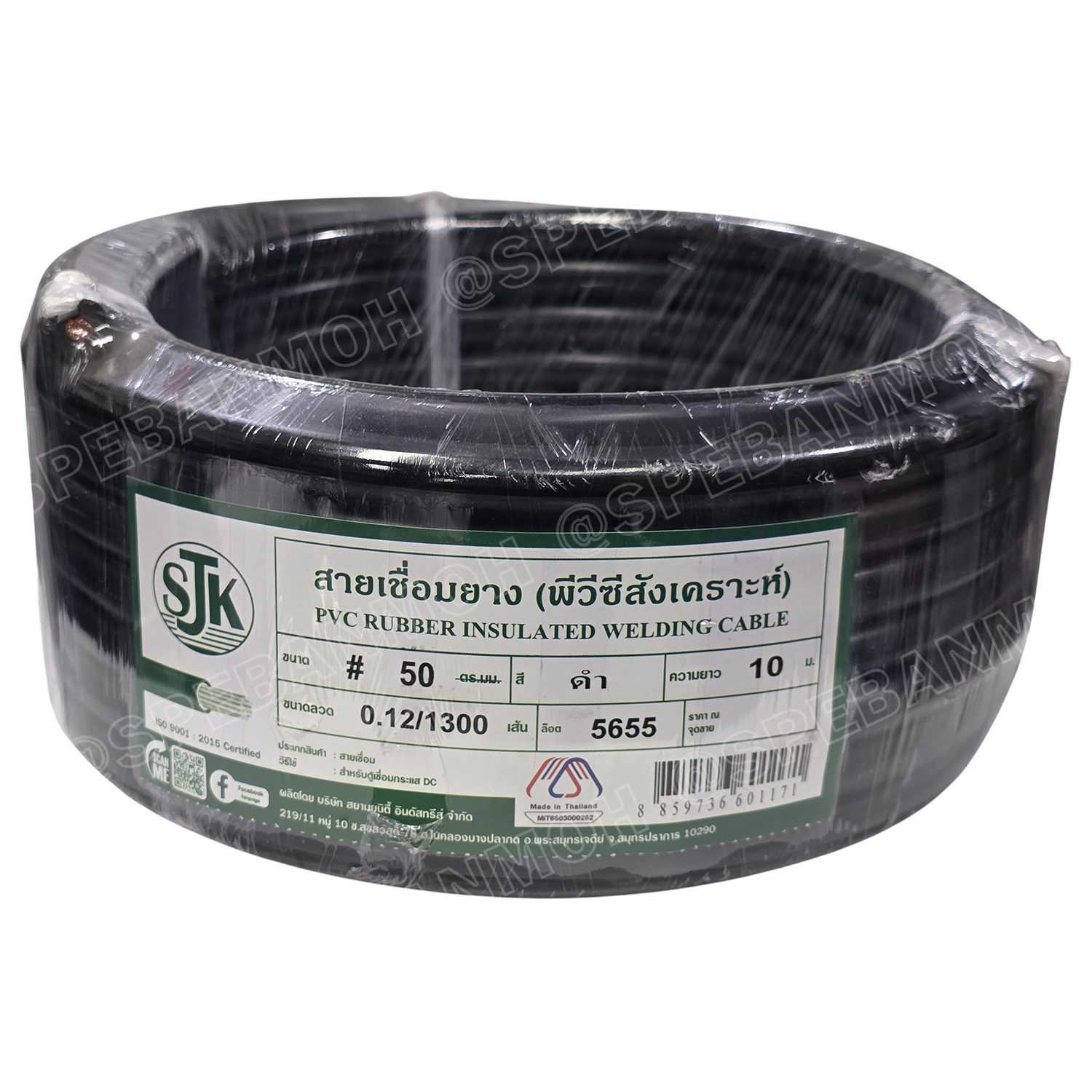

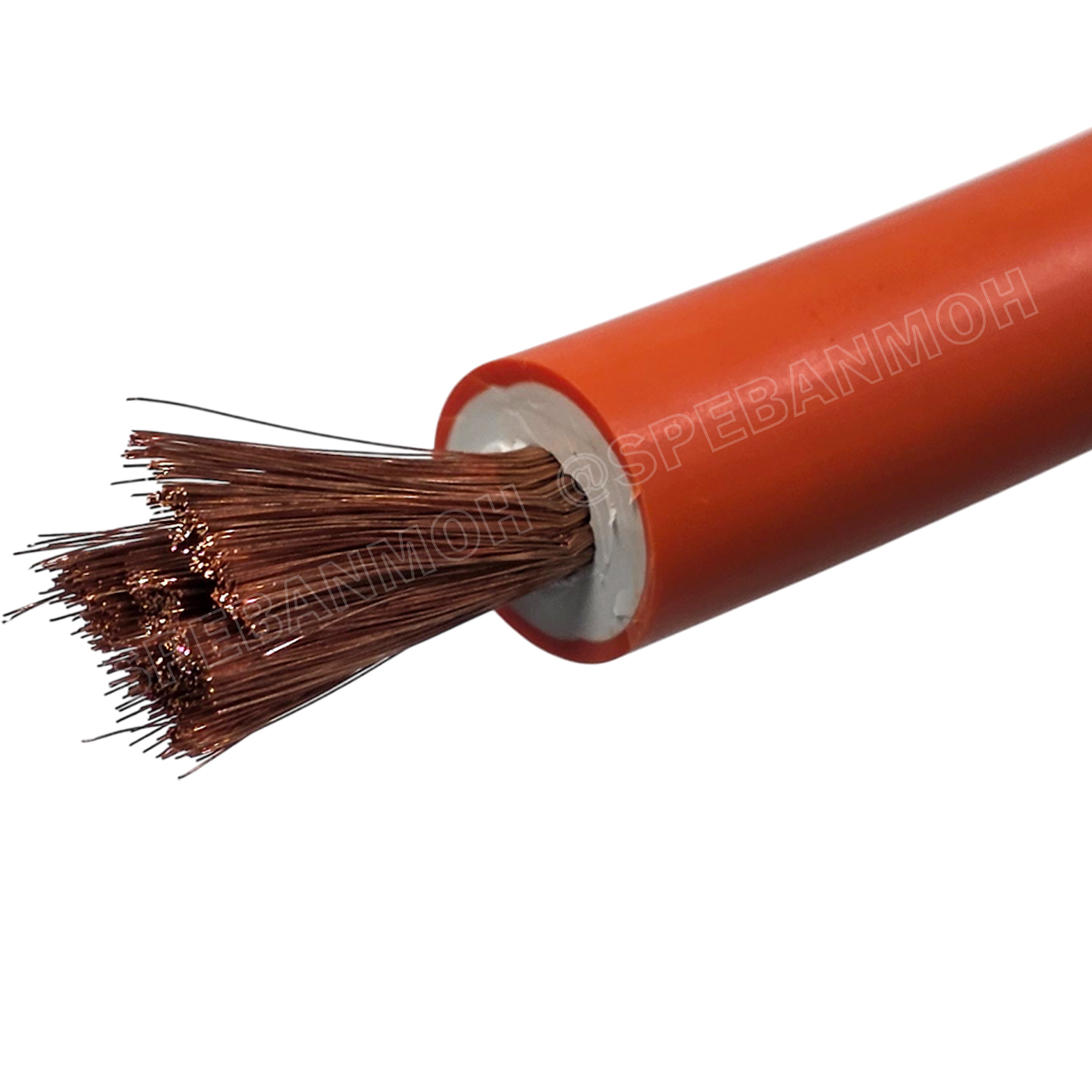

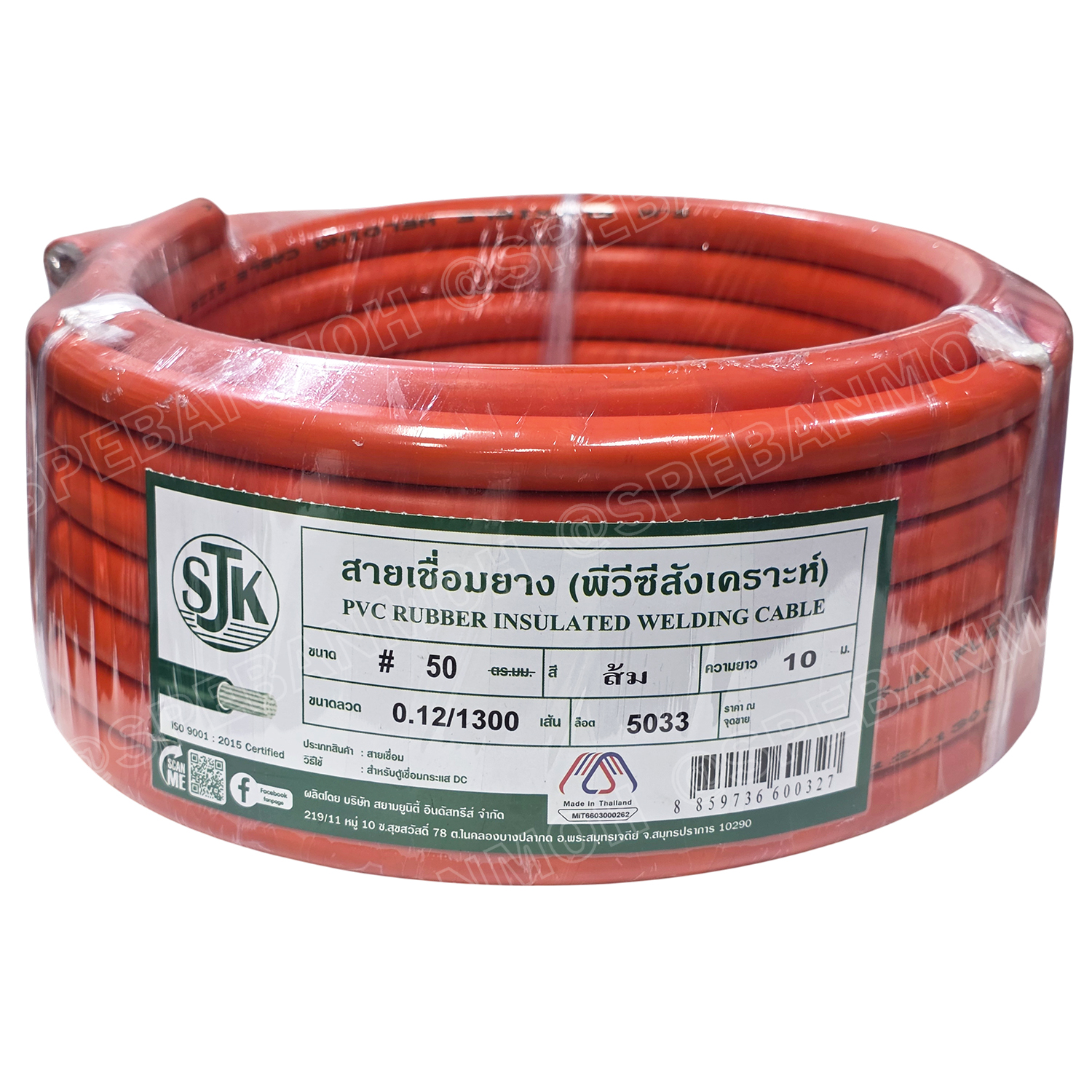

| WELDING CABLE รุ่น H01N2-D สายเชื่อมทองแดงเต็ม 100% ความอ่อนตัวสูง ฉนวนทำจาก Rubber ทนต่อน้ำมัน ทนต่อความชื้น การขูดขีดได้เป็นอย่างดี สามารถใช้ได้กับตู้เชื่อมหรือเป็นสายแบตเตอรี่ |
|
|
|
Part No. | Product Description | Conductor Size (mm²) | No of strands (mm) | Outer Dai. (mm) | Unit Price(THB) |
H01N2-D-25MM | สายเชื่อม (Welding Cable) | 25 | 800x0.2 | 10.0-13.0 | 200.00/เมตร ราคาส่งกรุณาติดต่อ |
H01N2-D-35MM | สายเชื่อม (Welding Cable) | 35 | 1120x0.2 | 11.5-14.5 | 250.00/เมตร ราคาส่งกรุณาติดต่อ |
H01N2-D-50MM | สายเชื่อม (Welding Cable) | 50 | 1600x0.2 | 13.0-170 | 350.00/เมตร ราคาส่งกรุณาติดต่อ |
H01N2-D-70MM | สายเชื่อม (Welding Cable) | 70 | 2240x0.2 | 15.0-19.0 | 470.00/เมตร ราคาส่งกรุณาติดต่อ |
