ออสซิลโลสโคป (Oscilloscope)

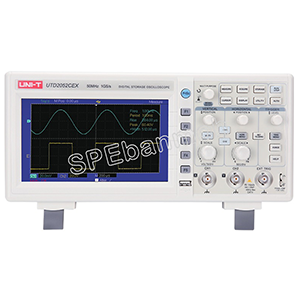

UTD2052CEX Digital Storage Oscilloscope

Feature :

1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available

UT-P04 Passive probe 100MHz

● Probe factor: （1:1/10:1）
● Bandwidth: 100MHz
● Input resistance: 1×:1MΩ±2%，10×:10MΩ±2%
● Working voltage: 1×:300Vpp，10×:600Vpp

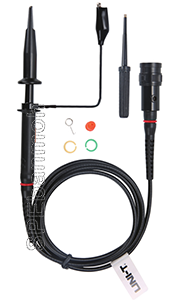

UT-P05 Passive probe 200MHz

● Probe factor: （1:1/10:1）
● Bandwidth: 200MHz
● Input resistance: 1×:1MΩ±2%，10×:10MΩ±2%
● Working voltage: 1×:300Vpp，10×:600Vpp

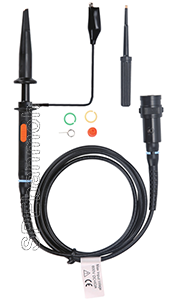

UT-P06 Passive probe 300MHz

● Probe factor: （1:1/10:1）
● Bandwidth: 300MHz
● Input resistance: 1×:1MΩ±2%，10×:10MΩ±2%
● Working voltage: 1×:300Vpp，10×:600Vpp
