Canal Switch














20A 125VAC / 16A 250VAC (UL,CUL)
6A 125VL, 3/4HP 250VAC(UL, CUL)
16(4) A 250VAC~T125 (VDE,ENEC, CQC)
none contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000VAC (UL), 3000 VAC(VDE) for 1 minute
Electrical Life: 6000 (UL); 10000 (VDE) cycles
Safety approved internationally by UL & CUL in North America,
  VDE, ENEC in Europe, CQC in Asia
Classical outlook and crystal lighting effect
Hightest Rating up to 20A 125VAC(UL, CUL)
Standard 13.8 x 28.6mm snap-in cutout size
IP40 & IP42 splash protected type available
Twin colors actuator available






Part No.

Product Description

Function

Rating

Unit Price(THB)

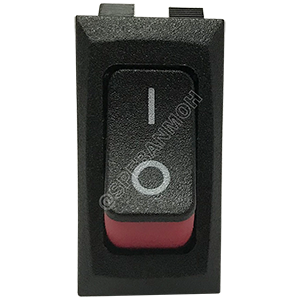

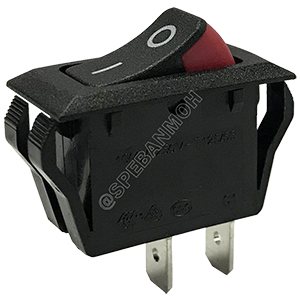

HB110-C

Էд (Rocker Switch) Taiwan

OFF-ON

16A 250VAC

35.00
Ҥ觡سҵԴ











20A 125VAC / 16A 250VAC (UL,CUL)
6A 125VL, 3/4HP 250VAC(UL, CUL)
16(4) A 250VAC~T125 (VDE,ENEC, CQC)
none contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000VAC (UL), 3000 VAC(VDE) for 1 minute
Electrical Life: 6000 (UL); 10000 (VDE) cycles
Safety approved internationally by UL & CUL in North America,
  VDE, ENEC in Europe, CQC in Asia
Classical outlook and crystal lighting effect
Hightest Rating up to 20A 125VAC(UL, CUL)
Standard 13.8 x 28.6mm snap-in cutout size
IP40 & IP42 splash protected type available
Twin colors actuator available






Part No.

Product Description

Function

Rating

Unit Price(THB)

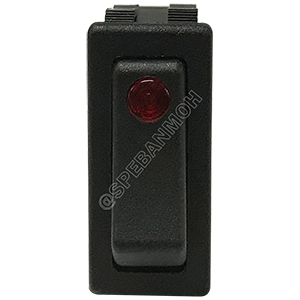

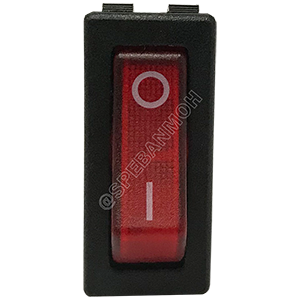

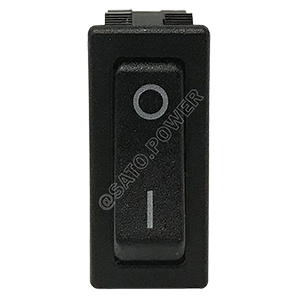

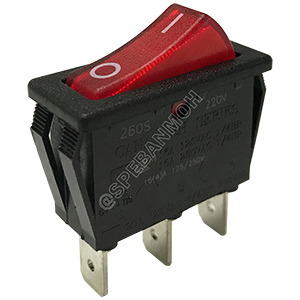

RH-110-C

Էд (Rocker Switch) Taiwan

OFF-ON

16A 250VAC

40.00
Ҥ觡سҵԴ













16A 125/250VAC(cURus)
16(4)A 250V~ T125/55 (ENEC10, CQC)
none contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000 VAC(UL), 1500VAC(ENEC)for 1 minute
Electrical life: 6000(UL); 10000(ENEC) cycles
Base : Nylon 66, UL rated : 94V-2 min
Actuator : Nylon 66 /PC, UL rated 94V-2 min
Spring : Piano wire
Contacts : Silver alloy
Terminals : Silver plated copper
Lamp : Neon for AC
SPST, SPDT
ON-OFF; ON-ON functions
Solder or quick connect terminals






Part No.

Product Description

Function

Rating

Unit Price(THB)

R-H10C

Էд (Rocker Switch) Taiwan

OFF-ON

16A 250VAC

40.00
Ҥ觡سҵԴ













20A 125VAC (cURus)
16A 125/250VAC(cURus)
16(4)A 250V~ T125/55 (VDE & ENEC10, CQC)
3/4HP 120/250VAC (cURus) optional
none contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000 VAC(UL), 1500VAC(VDE)for 1 minute
Electrical life: 6000(UL); 10000(VDE) cycles
Optional: Meeting IEC60335-1 glow wire test 750°C≦2Sec.
Safety approved internationally by cURus in North America,
  VDE& ENEC10 in Europe, CQC in Asia
Standard 22x30mm snap-in cutout size






Part No.

Product Description

Function

Rating

Unit Price(THB)

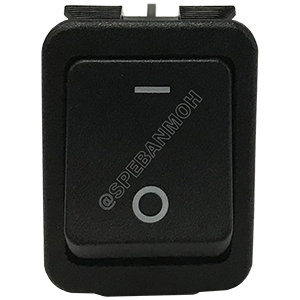

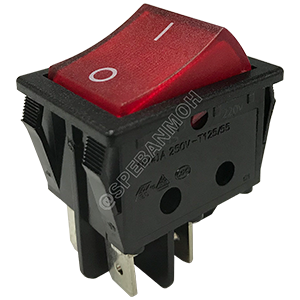

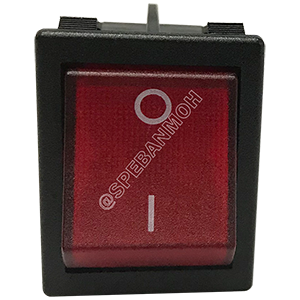

R-210-1-C

Էд (Rocker Switch) Taiwan

OFF-ON

16A 250VAC

45.00
Ҥ觡سҵԴ
