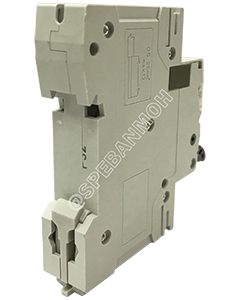

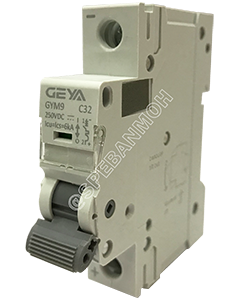

DC Circuit Breaker |  | GYM9-63DC 1P DC Circuit Breaker |
| | |   |
Technical Data
| | | Rate voltage | : 250VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 6000A | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | | | Part No. | Product Description | No. Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-63DC-1P | DC Circuit Breaker | 1P | 250VDC | 16A, 20A, 32A | 120.00
ราคาส่งกรุณาติดต่อ |
| | GYM9-63DC 2P DC Circuit Breaker |
| |   |
Technical Data
| | | Rate voltage | : 500VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 6000A | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | | | Part No. | Product Description | No. Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-63DC-2P | DC Circuit Breaker | 2P | 500VDC | 20A, 32A, 63A | 220.00
ราคาส่งกรุณาติดต่อ |
|
| GYM9-63DC 3P DC Circuit Breaker |
| | |   |
Technical Data
| | | Rate voltage | : 750VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 6000A | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | Part No. | Product Description | No. Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-63DC-3P | เบรกเกอร์ DC Circuit Breaker | 3P | 750VDC | 16A, 20A, 32A, 63A | 560.00
420.00
ราคาส่งกรุณาติดต่อ
|
| | GYM9-63DC 4P DC Circuit Breaker |
| | | |   |
Technical Data
| | | Rate voltage | : 1000VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 6000A | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | Part No. | Product Description | Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-63DC-4P | เบรกเกอร์ DC Circuit Breaker | 4P | 1000VDC | 16A, 20A, 32A, 63A | 525.00
ราคาส่งกรุณาติดต่อ |
|
| GYM9-125DC 1P DC Circuit Breaker |
| | |   |
Technical Data
| | | Rate voltage | : 250VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 10kA | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | Part No. | Product Description | No. of Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-125DC-1P | เบรกเกอร์ DC Circuit Breaker | 1P | 250VDC | 125A | 200.00
ราคาส่งกรุณาติดต่อ |
|
| GYM9-125DC 2P DC Circuit Breaker |
| | | |   |
Technical Data
| | | Rate voltage | : 500VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 10kA | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | Part No. | Product Description | No. of Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-125DC-2P | เบรกเกอร์ DC Circuit Breaker | 2P | 500VDC | 125A | 400.00
ราคาส่งกรุณาติดต่อ |
|
| GYM9-125DC 3P DC Circuit Breaker |
| | | |   |
Technical Data
| | | Rate voltage | : 750VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 10kA | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | Part No. | Product Description | No. of Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-125DC-3P | เบรกเกอร์ DC Circuit Breaker | 3P | 750VDC | 125A | 690.00
ราคาส่งกรุณาติดต่อ |
|
| GYM9-125DC 4P DC Circuit Breaker |
| | | |   |
Technical Data
| | | Rate voltage | : 1000VDC | | Insulation voltage | : 1000V | | Rated breaking capacity | : 6000A | | Rated impulse withstand voltage | : 6kV | | Dielectric test voltage for1min | : 2kV | | Contact position indicator | : Yes | | Protection degree | : IP20 |
|
| | | Part No. | Product Description | No. of Pole | Voltage (V) | Current (A) | Unit Price(THB) | |
GYM9-125DC-4P | เบรกเกอร์ DC Circuit Breaker | 4P | VDC | 125A | 850.00
ราคาส่งกรุณาติดต่อ |
| FB1-63 (FB1 Circuit Breaker) | |  |
|
| | TECHNICAL DATA : | -Design according to
-Rated Voltage
-Rated Frequency
-Rated Breaking Capacity
-Characteristics
-Permissible back-up fuse protection
-Selectivity Class
-Tripping Temperature
-Degree of protection
-Endurane | :
:
:
:
:
:
:
:
:
|
FEATURES : | | -Frame size
-Socket size
Device width | :
:
: |
| | | FB1-63 | |
| | | | | PART NUMBER | PRODUCT DESCRIPTION | POLE | Voltage (V) | Current (A) | UNIT PRICE(THB) | |
FB1-63-1P | DC Circuit Breaker | 1P | 600VDC | 10A, 16A, 20A, 25A, 32A | 120.00
ราคาส่งกรุณาติดต่อ | FB1-63-2P | DC Circuit Breaker | 2P | 600VDC | 16A, 20A, 25A, 32A, 50A, 63A | 180.00
ราคาส่งกรุณาติดต่อ |
|
DC Fuse Base (10x38) | |
|
| Application : This solar fuse holder designed to match solar fuse 10mm*38mm.The pv fuse holder offers 1000VDC 30A,7.5*35 mm DIN rail mountable.They are available in 1, 2, 3 and 4 pole configurations or can be connected together with an assembly kit. Solar Fuse Holder
Usage: Low Voltage Safety Standards: IEC Breaking Capacity: High Rated voltage: 1000V DC Certificate: CE.TUV.RoHS Matched fuse : 10X38mm | SLPV-30DN-1P | | |
| | PART NUMBER | PRODUCT DESCRIPTION | Rated Voltage (V) | Suitable for : | UNIT PRICE(THB) | |
SLPV-30DN-1P | ตลับฟิวส์ DC (DC Fuse Base) | 1000 Vdc | 10x38 | 50 .00
ราคาส่งกรุณาติดต่อ |
|

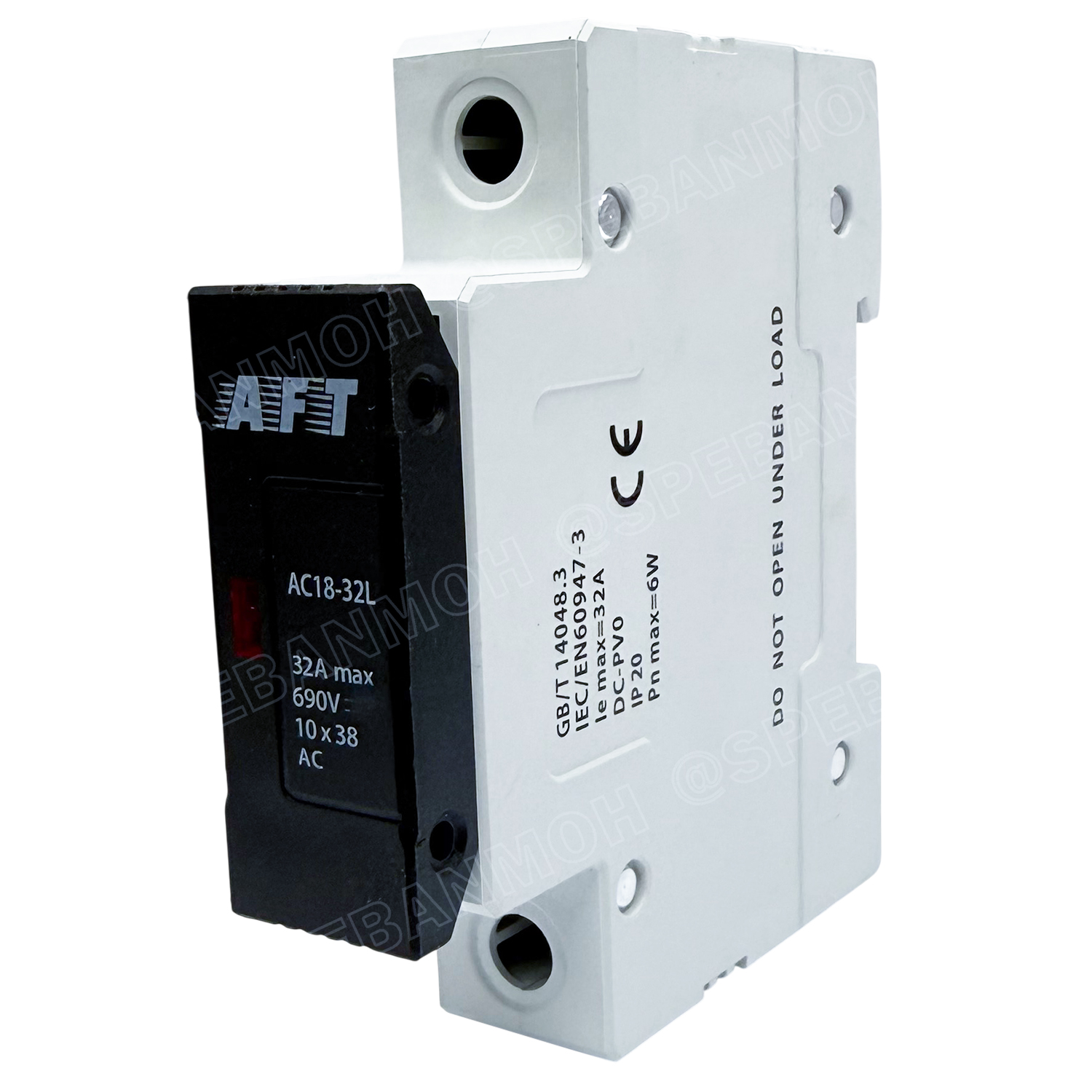

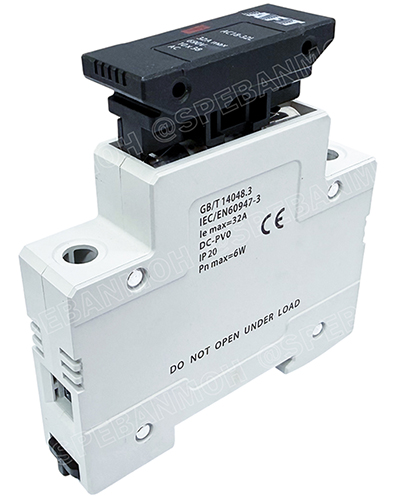

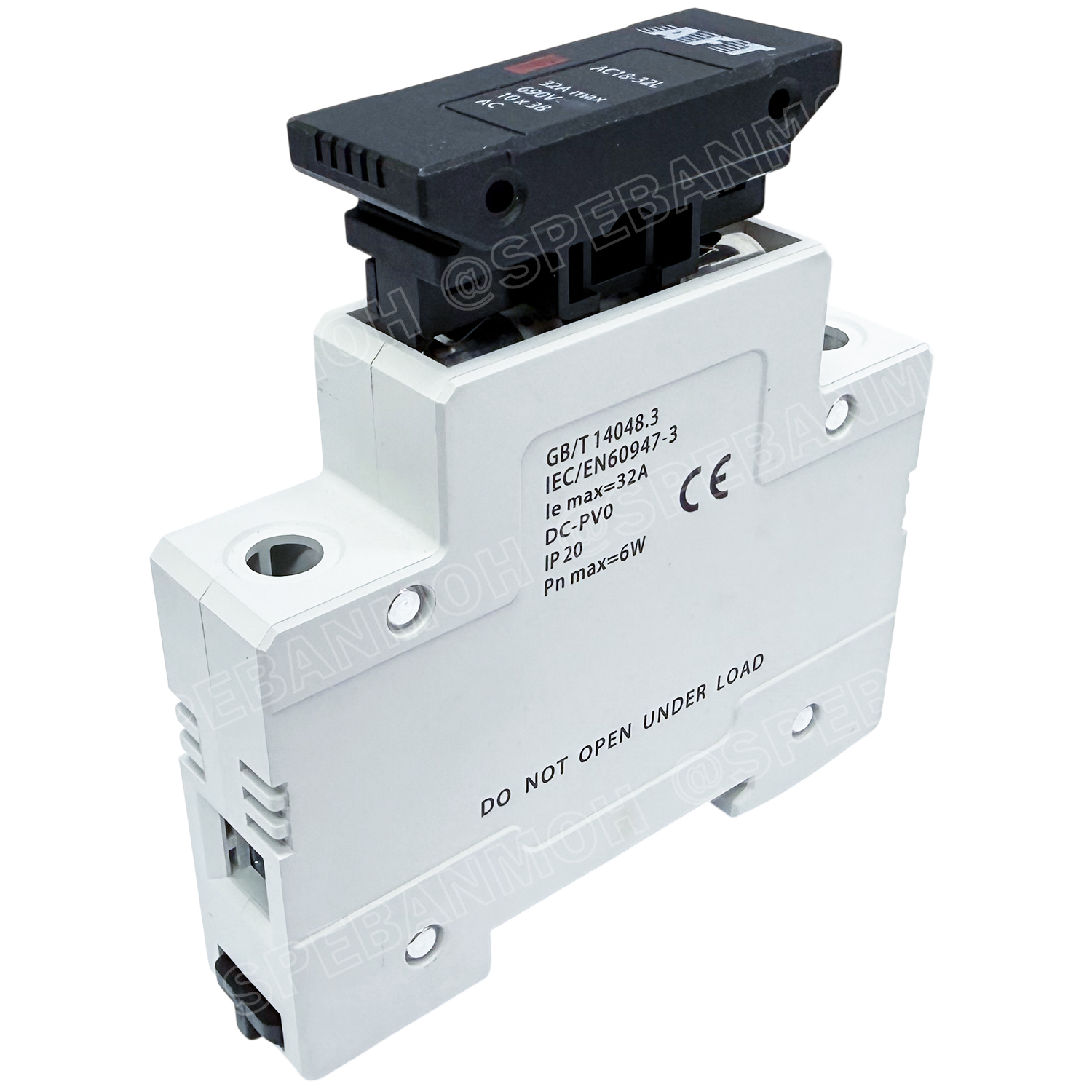

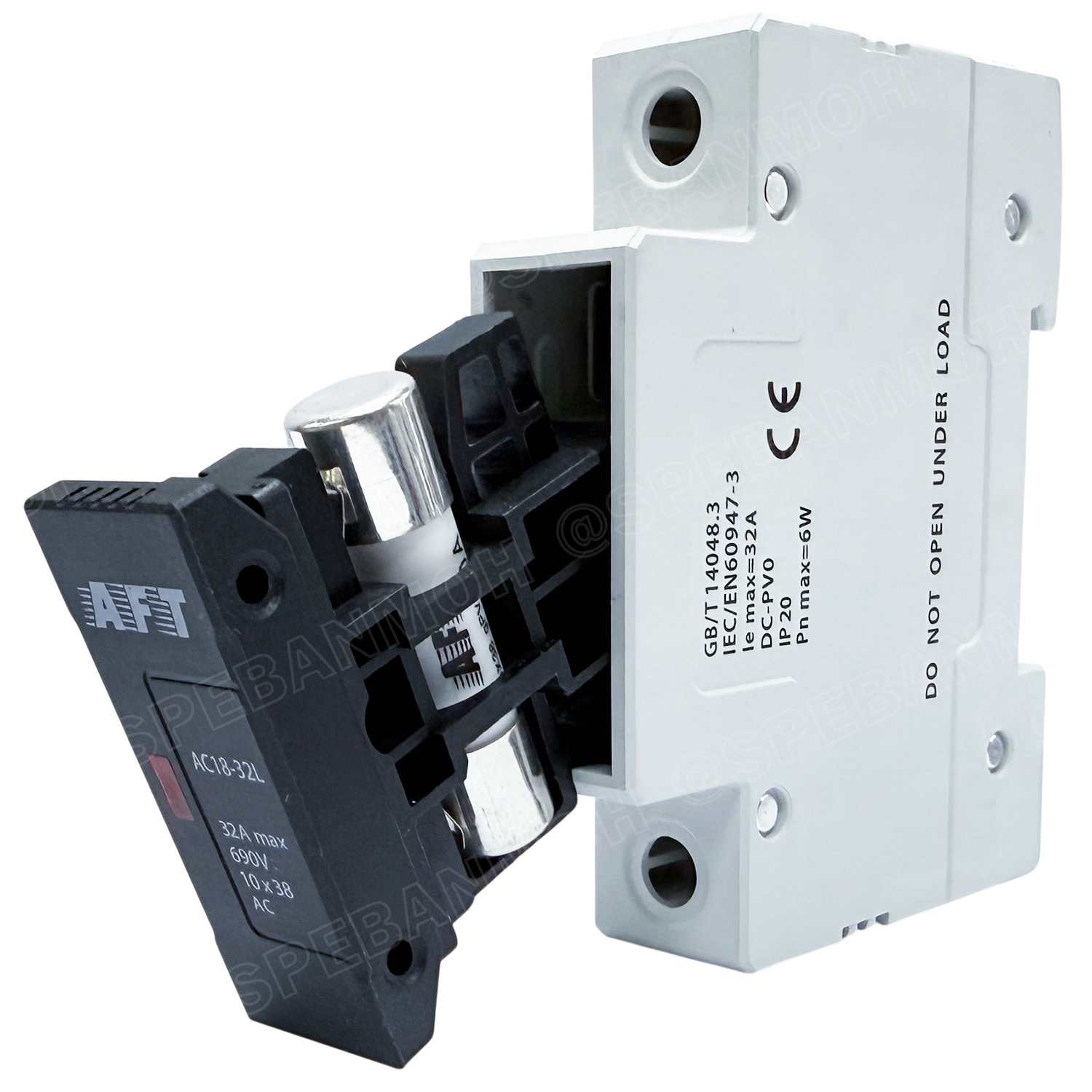

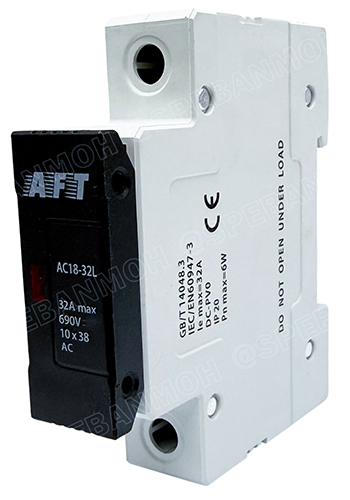

DC Fuse Base + Lamp (10x38) | | | |
| | Application : This solar fuse holder designed to match solar fuse 10mm*38mm.The pv fuse holder offers 1000VDC 30A,7.5*35 mm DIN rail mountable.They are available in 1, 2, 3 and 4 pole configurations or can be connected together with an assembly kit. Solar Fuse Holder
Usage: Low Voltage Safety Standards: IEC Breaking Capacity: High Rated voltage: 1000V DC Certificate: CE.TUV.RoHS Matched fuse : 10X38mm |
|
| | | | PART NUMBER | PRODUCT DESCRIPTION | Rated Voltage (V) | Suitable for : | UNIT PRICE(THB) | |
SLPV-30DNL-1P | ตลับฟิวส์ DC แบบมีไฟ (DC Fuse Base) | 1000 Vdc | 10x38 | 60 .00
ราคาส่งกรุณาติดต่อ |
|

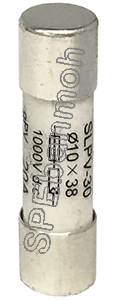

DC Solar Fuse | | | |
| Application : This gPV fuse is designed to protect PV strings in solar PV combiner box,it has ampers of 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A,15A, 20A, 25A, 30A. Rated breaking capacity up to 40KA.And have obtained CE,RoHS and TUV.It also has types of bolt fixing and PCB fixing. GPV Fuse
Usage: Low Voltage
Safety Standard: IEC
Breaking Capacity: High
Type: gPV fuse
Certificate: TUV,CE,RoHS
Size: 10*38mm | SLPV-30 | |
| | | Part No. | Product Description | Rated Current (A) | Fuse Size (mm) | Unit Price
(THB) | |
SLPV-30 | Solar Fuse 1000Vdc | 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A,12A,
15A, 20A, 25A, 30A | 10x38 | 30.00
ราคาส่งกรุณาติดต่อ |
|
DC Fuse Base (10x85) | | |
|
| PV Fuse Base
Poles Number: 1P Type: High Voltage Rated Voltage: DC1500V Rated current: 32A Breaking capacity: High | SLPV-30DN-1P | | |
| | | | | Part No. | PRODUCT DESCRIPTION | Rated Voltage (V) | Suitable for : | UNIT PRICE(THB) | |
SLPV-32LD | ตลับฟิวส์ DC (DC Fuse Base) | 1500VDC | 10x85 | 120 .00
ราคาส่งกรุณาติดต่อ |
|
DC Solar Fuse(10x85) | |
| Fuse GPV 10x85 Solar
This solar pv string fuse is engineered and designed specifically for the protection of photovoltaic systems.The 1500v fuse dimension 10x85mm, amperage rating:1A - 32A.
Application
This solar pv string fuse is engineered and designed specifically for the protection of photovoltaic systems.The 1500v fuse have dimension of 10x65mm and 10x85mm, amperage rating:1,2,3,4,5,6, 8, 10, 12, 15, 20, 25 and 30A. Technical Parameter Why choose us Customer visit Our advantage | | |
| | | Part No. | Product Description | Rated Current (A) | Size (mm) | Unit Price
(THB) | |
SLPV-32L-*** | Solar Fuse 1500Vdc | *** = 2A, 15A, 20A, 32A | 10x85 | 110.00
ราคาส่งกรุณาติดต่อ |
|
 | DC Fuse Holder for Photovoltaics systems |
| | | | | | Part No. | Product Description | Voltage (V) | Rated Current (A) | Fuse Size (mm) | Unit Price(THB) | |
AFPV-32 | ตลับฟิวส์ DC (DC Fuse Base) | 1000 Vdc | 32A | 10x38 | 55.00
ราคาส่งกรุณาติดต่อ |
|
|  | 10x38 DC Fuse for Photovoltaics systems |
| | | | | | Part No. | Product Description | Rated Current (A) | Fuse Size (mm) | Unit Price
(THB) | |
DC-15 | Solar Fuse 1000Vdc | 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A,
20A, 25A, 30A, 32A | 10x38 | 50.00
ราคาส่งกรุณาติดต่อ |
|
| DC Fuse Holder for Photovoltaics systems |
| | | | | | Part No. | Product Description | Voltage (V) | Rated Current (A) | Fuse Size (mm) | Unit Price(THB) | |
AFPV-63 | ตลับฟิวส์ DC (DC Fuse Base) | 1000 Vdc | 63A | 14x51 | 85.00
ราคาส่งกรุณาติดต่อ |
|
| | 14x51 DC Fuse for Photovoltaics systems |
| | | | | | Part No. | Product Description | Rated Current (A) | Fuse Size (mm) | Unit Price
(THB) | |
DC-16 | Solar Fuse 1000Vdc | 15A, 20A, 25A, 30A, 32A, 40A, 50A,63A | 14x51 | 90.00
ราคาส่งกรุณาติดต่อ |
|
| DC Fuse Holder for Photovoltaics systems |
| | | | | | Part No. | Product Description | Voltage (V) | Rated Current (A) | Fuse Size (mm) | Unit Price(THB) | |
AFPV-32L | ตลับฟิวส์ DC (DC Fuse Holder) | 1500 Vdc | 32A | 10x85 | 80.00
ราคาส่งกรุณาติดต่อ |
|
| | 10x85 DC Fuse for Photovoltaics systems |
| | | | | | Part No. | Product Description | Rated Current (A) | Fuse Size (mm) | Unit Price
(THB) | |
DC-17 | Solar Fuse 1500Vdc | 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A,
20A, 25A, 30A, 32A | 10x85 | 90.00
ราคาส่งกรุณาติดต่อ |
