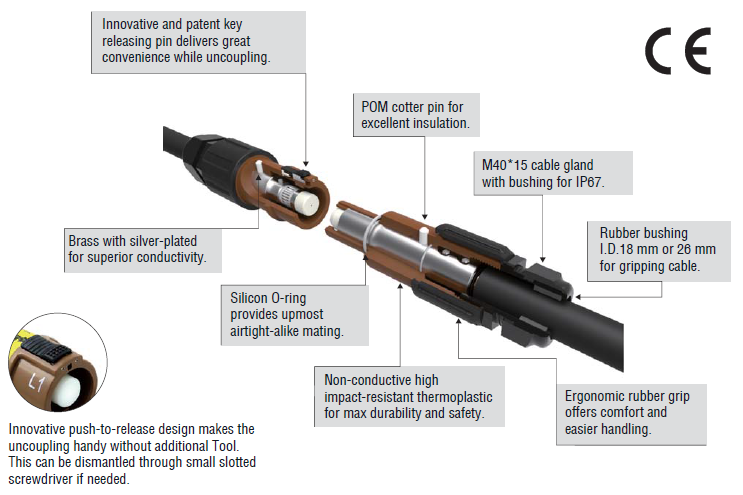

POWERFIT 400AMP ConnectorsPowerFit connectors are well fabricated and compatible with major brands of single-pole power connector. The invented patent key releasing pin, particularly embedded on each line source and panel source, delivers great safety and convenience without additional tool while uncoupling.
PowerFit is made in high standards. Full series employ high impact and temperature resistance thermoplastic, with flame retardant compound. Ergonomic rubber hand grip on each line connector provides the great comfort to the utility. The M40 cable gland comes standard and while connectors mated, it becomes IP67 rated. Unsurpassed pushing button design makes the handling of coupling and uncoupling easier. Respective phase and line information is clearly marked on the connectors for easy identification. The contact is made of brass with silver plated, providing excellent conductivity. Cotter pin is made of POM featuring great insulation, high stiffness, low friction and absorbent.
|  | TECHNICAL INFORMATION
- Current Rating: 400A continuous with 120mmsq cable.
- Withstanding Voltage: 1000Vac.
- Test Voltage: 4500Vac.
- Short Circuit Rating: Up to 35.5kA.
- Insulation Resistance: >5000 M Ohms at 500Vac.
- Contact Resistance: 0.1m Ohms.
- IP rating while mated: IP67.
- Contact Material: Brass with silver plated.
- Housing Material: High Impact Resistant Thermoplastic.
- Cotter Pin Material: POM.
- Working Temperature:
45 to 85 Degree C / - Contact Type: Set Screw.
- Set Screw Torque on Brass Contact:
10.5 N/meter (minimum required).
- Mating Cycle: 500 / - Flammability: UL94-V0.
- CE and RoHS compliant. | | LINE SOURCE |


Part No. | Type | Key Position | Color | Contact | Cable Gland
Clamping | Unit Price
(THB) | PFLS-1BN-S120M40A | Line Source | Line 1 | Brown | Set Screw 120 sqmm | M40 / 19-28 mm | 2,500.00
ราคาส่งกรุณาติดต่อ | PFLS-2BK-S120M40A | Line Source | Line 2 | Black | Set Screw 120 sqmm | M40 / 19-28 mm | 2,500.00
ราคาส่งกรุณาติดต่อ | PFLS-3GY-S120M40A | Line Source | Line 3 | Gray | Set Screw 120 sqmm | M40 / 19-28 mm | 2,500.00
ราคาส่งกรุณาติดต่อ | PFLS-NBL-S120M40A | Line Source | Neutral | Blue | Set Screw 120 sqmm | M40 / 19-28 mm | 2,500.00
ราคาส่งกรุณาติดต่อ | PFLS-EGN-S120M40A | Line Source | Earth | Green | Set Screw 120 sqmm | M40 / 19-28 mm | 2,500.00
ราคาส่งกรุณาติดต่อ |
| | LINE DRAIN |


Part No. | Type | Key Position | Color | Contact | Cable Gland
Clamping | Unit Price
(THB) | PFLD-1BN-S120M40A | Line Drain | Line 1 | Brown | Set Screw 120 sqmm | M40 / 19-28 mm | 2,300.00
ราคาส่งกรุณาติดต่อ | PFLD-2BK-S120M40A | Line Drain | Line 2 | Black | Set Screw 120 sqmm | M40 / 19-28 mm | 2,300.00
ราคาส่งกรุณาติดต่อ | PFLD-3GY-S120M40A | Line Drain | Line 3 | Gray | Set Screw 120 sqmm | M40 / 19-28 mm | 2,300.00
ราคาส่งกรุณาติดต่อ | PFLD-NBL-S120M40A | Line Drain | Neutral | Blue | Set Screw 120 sqmm | M40 / 19-28 mm | 2,300.00
ราคาส่งกรุณาติดต่อ | PFLD-EGN-S120M40A | Line Drain | Earth | Green | Set Screw 120 sqmm | M40 / 19-28 mm | 2,300.00
ราคาส่งกรุณาติดต่อ |
| | PANEL SOURCE |


Part No. | Type | Key Position | Color | Thread & Nut | Cable Gland
Clamping | Unit Price
(THB) | PFPS-1BN-S120M40A | Panel Source | Line 1 | Brown | Set Screw 120 sqmm | M12 | 2,300.00
ราคาส่งกรุณาติดต่อ | PFPS-2BK-S120M40A | Panel Source | Line 2 | Black | Set Screw 120 sqmm | M12 | 2,300.00
ราคาส่งกรุณาติดต่อ | PFPS-3GY-S120M40A | Panel Source | Line 3 | Gray | Set Screw 120 sqmm | M12 | 2,300.00
ราคาส่งกรุณาติดต่อ | PFPS-NBL-S120M40A | Panel Source | Neutral | Blue | Set Screw 120 sqmm | M12 | 2,300.00
ราคาส่งกรุณาติดต่อ | PFPS-EGN-S120M40A | Panel Source | Earth | Green | Set Screw 120 sqmm | M12 | 2,300.00
ราคาส่งกรุณาติดต่อ |
| | PANEL DRAIN |


Part No. | Type | Key Position | Color | Thread & Nut | Cable Gland
Clamping | Unit Price
(THB) | PFPD-1BN-S120M40A | Panel Drain | Line 1 | Brown | Set Screw 120 sqmm | M12 | 2,100.00
ราคาส่งกรุณาติดต่อ | PFPD-2BK-S120M40A | Panel Drain | Line 2 | Black | Set Screw 120 sqmm | M12 | 2,100.00
ราคาส่งกรุณาติดต่อ | PFPD-3GY-S120M40A | Panel Drain | Line 3 | Gray | Set Screw 120 sqmm | M12 | 2,100.00
ราคาส่งกรุณาติดต่อ | PFPD-NBL-S120M40A | Panel Drain | Neutral | Blue | Set Screw 120 sqmm | M12 | 2,100.00
ราคาส่งกรุณาติดต่อ | PFPD-EGN-S120M40A | Panel Drain | Earth | Green | Set Screw 120 sqmm | M12 | 2,100.00
ราคาส่งกรุณาติดต่อ |
|
| | | | | | | | | | | | | | | | | | |
| |
|
